Post Pallet

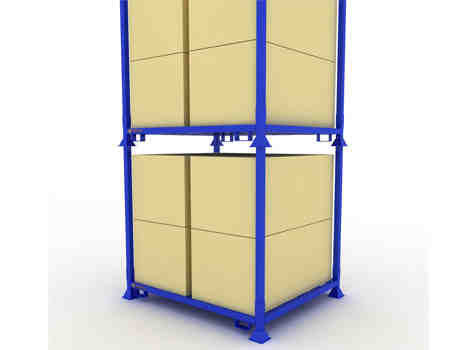

Stacking and portable post rack especially suitable for goods that are afraide of pressure. take the place of shelves.

If you have any question or need drawings or solutions, Please leave us a message.
Inquiry Post Pallet

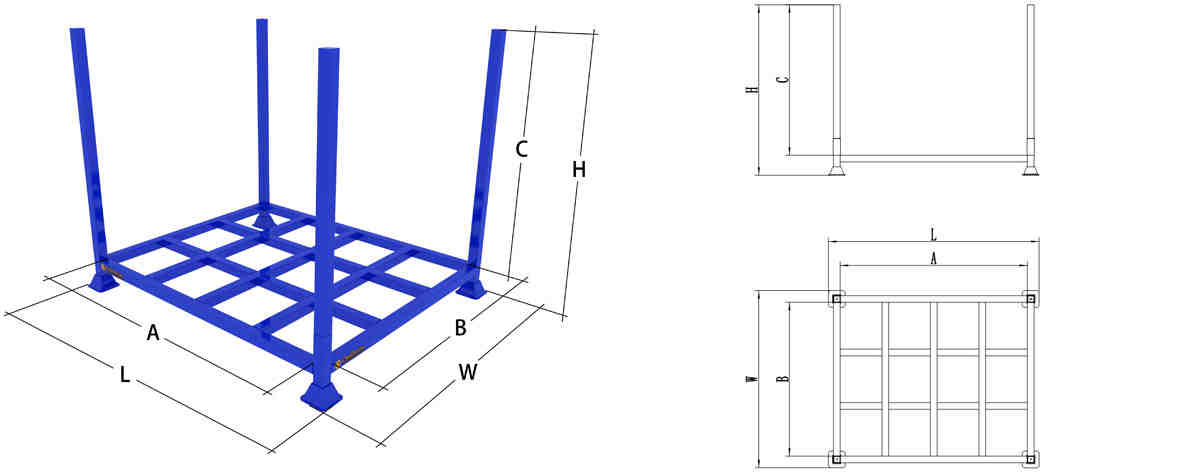

Exterior Dimensions:

Folded Size:

Interior Dimensions:

Material

Safe Working Load:

Weight:

Loading Quantity

Surface treatment
1260 x 1060 x 1020 mm
49.6 x 41.73 x 40.15 inches
1260 x 1060 x 350 mm
49.6 x 41.73 x 13.77 inches

1120 x 920 x 900 mm
44.09 x 36.22 x 35.43 inches

Q235

2400kg

28.87kg

280 PCS / 40'HC

Powder coating

1260 x 1260 x 1220 mm
49.6 x 49.6 x 48.03 inches

1260 x 1260 x 350 mm
49.6 x 49.6 x 13.77 inches
1120 x 1120 x 1100 mm
44.9 x 44.9 x 43.3 inches
Q235 2400kg 36.54kg

280 PCS / 40'HC

Powder coating

1360 x 1260 x 1320 mm
53.54 x 49.6 x 51.96 inches

1360 x 1260 x 350 mm
53.54 x 49.6 x 13.77 inches
1220 x 1120 x 1200 mm
48.03 x 44.09 x 47.24 inches
Q235 2400kg 38.64kg

240 PCS / 40'HC

Powder coating

1360 x 1260 x 1320 mm
53.54 x 49.6 x 51.96 inches

1360 x 1260 x 350 mm
53.54 x 49.6 x 13.77 inches
1220 x 1120 x 1200 mm
48.03 x 44.09 x 47.24 inches
Q235 2400kg 38.64kg

240 PCS / 40'HC

Powder coating
Customized as required
Proudct Feature

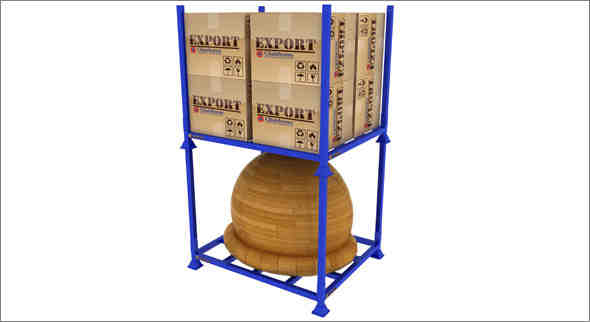

1.The detachable stacking rack is suitable for storage of products that are pressure - proof, fragile, irregular in shape and not easy to stack.
Post Pallet
Post Pallet

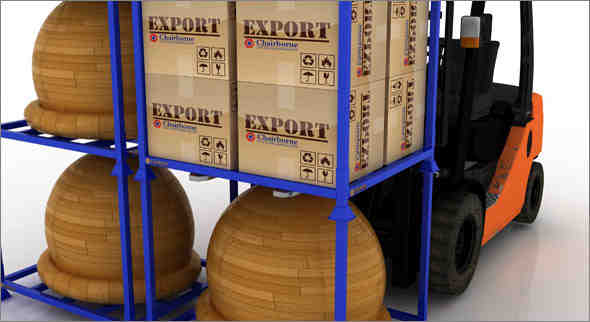

2.Using folklift to stack the racks, increasing utility rate of space.

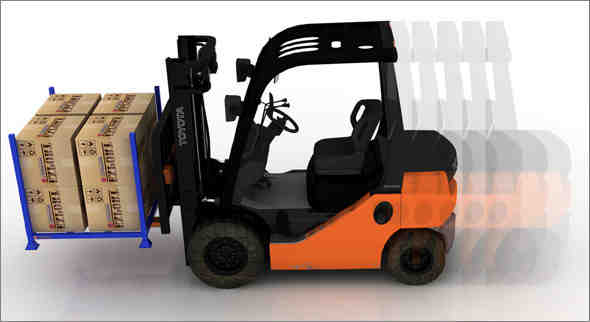

3.Convenient to use, you can change application site easily.
Post Pallet
Post Pallet

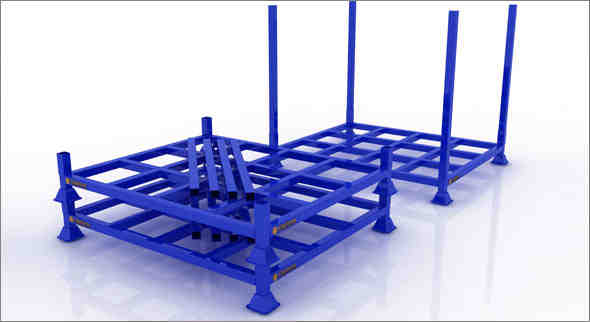

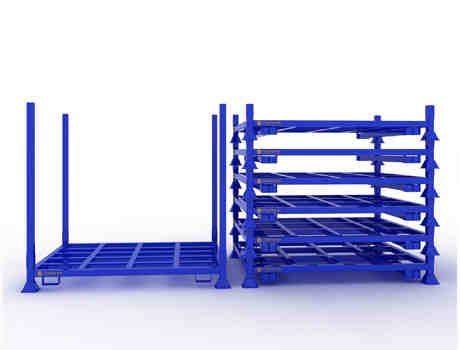

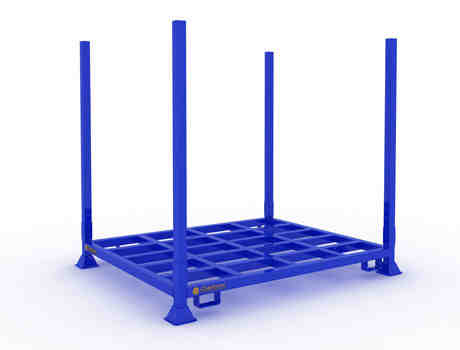

4.The four pillars of the rack are detachable and can be storaged under the base, which can avoid missing, save spaces and is convenient for storage and transport.

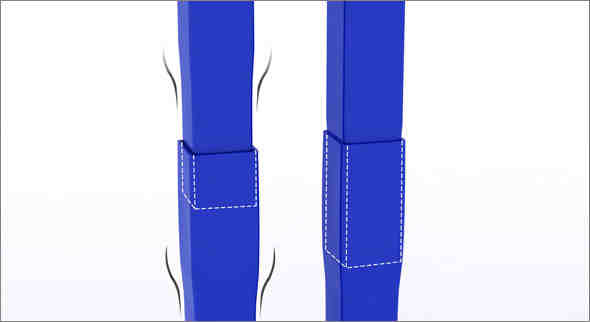

5.The special processing of the pillars ensures that the splicing process is closely coordinated, so as to avoid shaking when stacking and ensure safety.
Post Pallet
Post Pallet

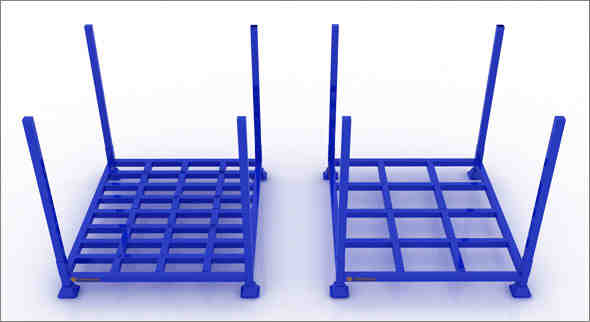

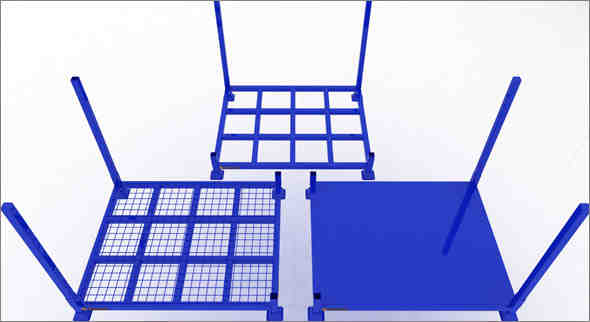

6.The grid of the base can be different according to different loading goods.
7.Grid plate or steel plate can be added to the base according to differnet types of goods.
Post Pallet
