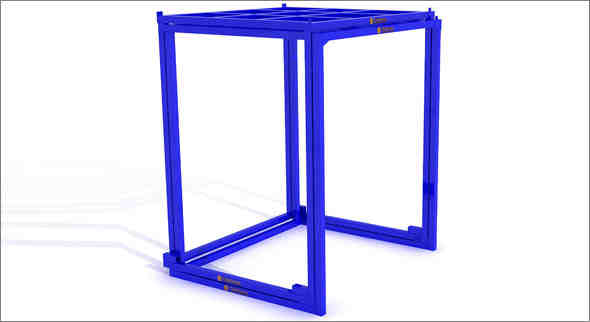

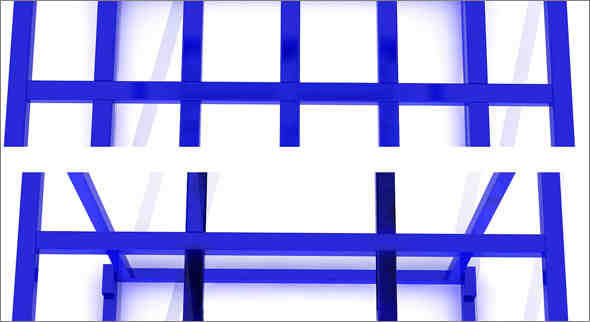

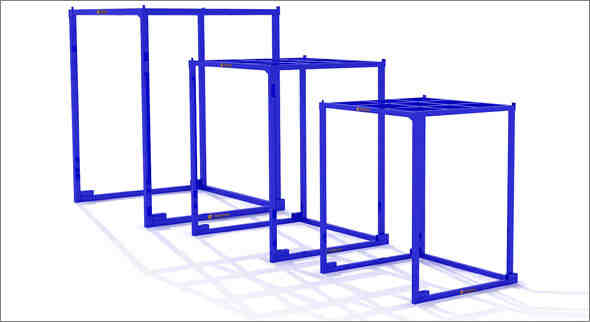

Nesting Racks

Heavy duty construction pallet racks which can be stacked up to 3 high

If you have any question or need drawings or solutions, Please leave us a message.

Now

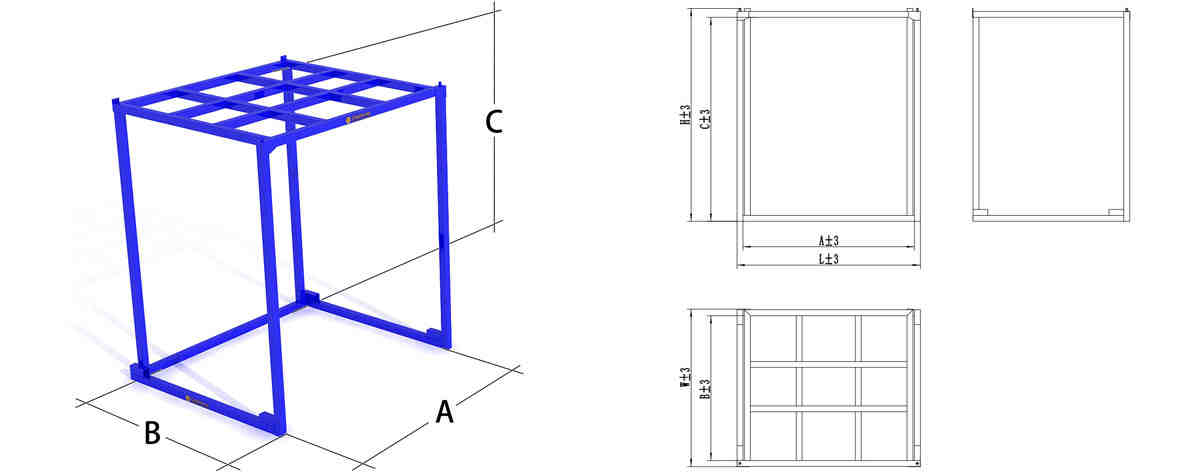

Exterior Dimensions:	Interior Dimensions:	Material	Safe Working Load:	Weight:	Loading Quantity	Surface treatment
1000 x 1200 x 1500 mm 39.37 x 47.24 x 59.05 inches	1120 x 1208 x 1560 mm 44.09 x 47.55 x 61.41 inches	Q235	3000kg	41.9kg	160 PCS / 40'HC	Powder coating
1200 x 1200 x 1500 mm 47.24 x 47.24 x 59.05 inches	1320 x 1208 x 1560 mm 51.96 x 47.55 x 61.41 inches	Q235	3000kg	44.19kg	160 PCS / 40'HC	Powder coating
1300 x 1100 x 1500 mm 51.18 x 43.3 x 59.05 inches	1420 x 1108 x 1560 mm 55.9 x 43.62 x 61.41 inches	Q235	3000kg	46.04kg	160 PCS / 40'HC	Powder coating
Customized as required

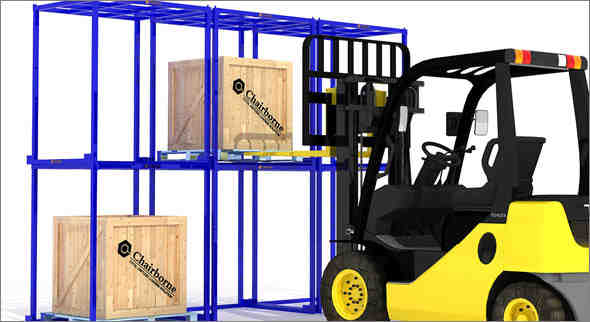

1.This product needs to be used together with pallet, which is suitable for rapid establishment and removal of three-dimensional storage space.

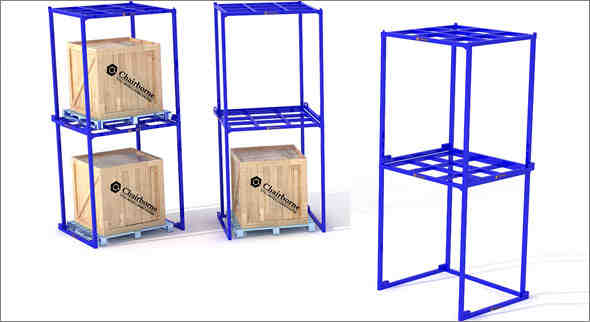

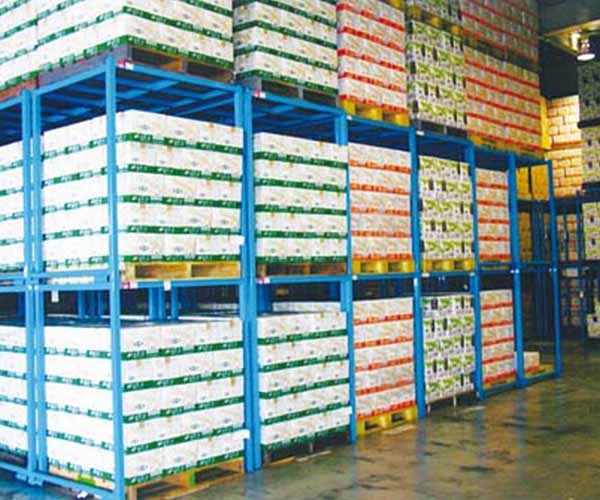

2.The rack can be arranged in different positions and combinations according to the situation of storage space to maximize space utilization.

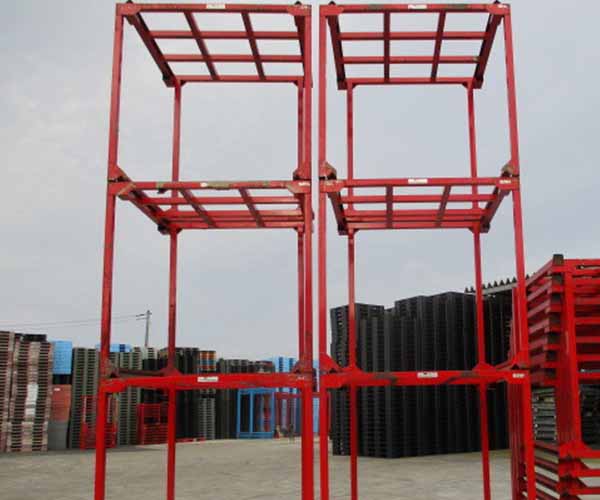

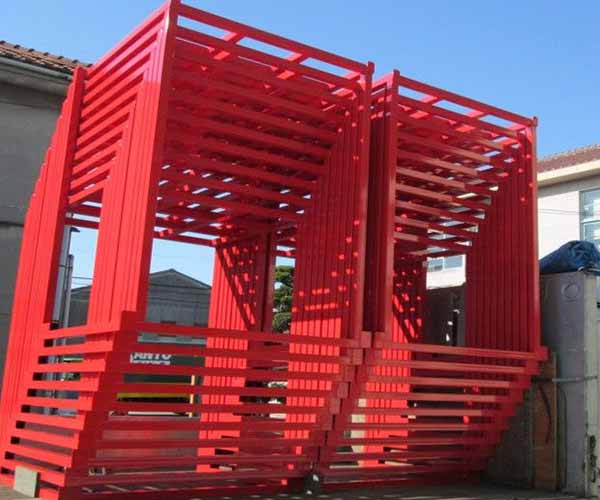

3.The rack can be stacked and placed when no load, which is convenient for storage and transportation.

4.The specifications of this rack can be customized according to user requirements.

5.When stacking this product, the lowest storage space is not limited by strength, and goods of any weight can be placed.

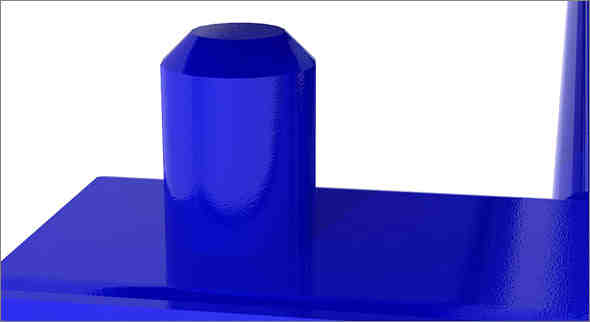

6.The rack is equipped with positioning pin to improve positioning accuracy and stability during stacking.

7.The number of transverse bracing can be increased or decreased according to the actual loading specifications.
