| Dimensions | Weight | Surface | Capacity (t) | |||||
| A(mm) | B(mm) | C(mm) | H2(mm) | W2(mm) | KG | Dynamic | Static | |
| 2380 | 1120 | 1060 | 125 | 245 | 85.48 | Powder coating | 0.5T | 1.5T |
| 2380 | 1120 | 1060 | 150 | 245 | 87.45 | Powder coating | 0.5T | 1.5T |
| 2380 | 1120 | 1060 | 175 | 245 | 93.78 | Powder coating | 0.5T | 1.5T |
| Customized as required | ||||||||
 |

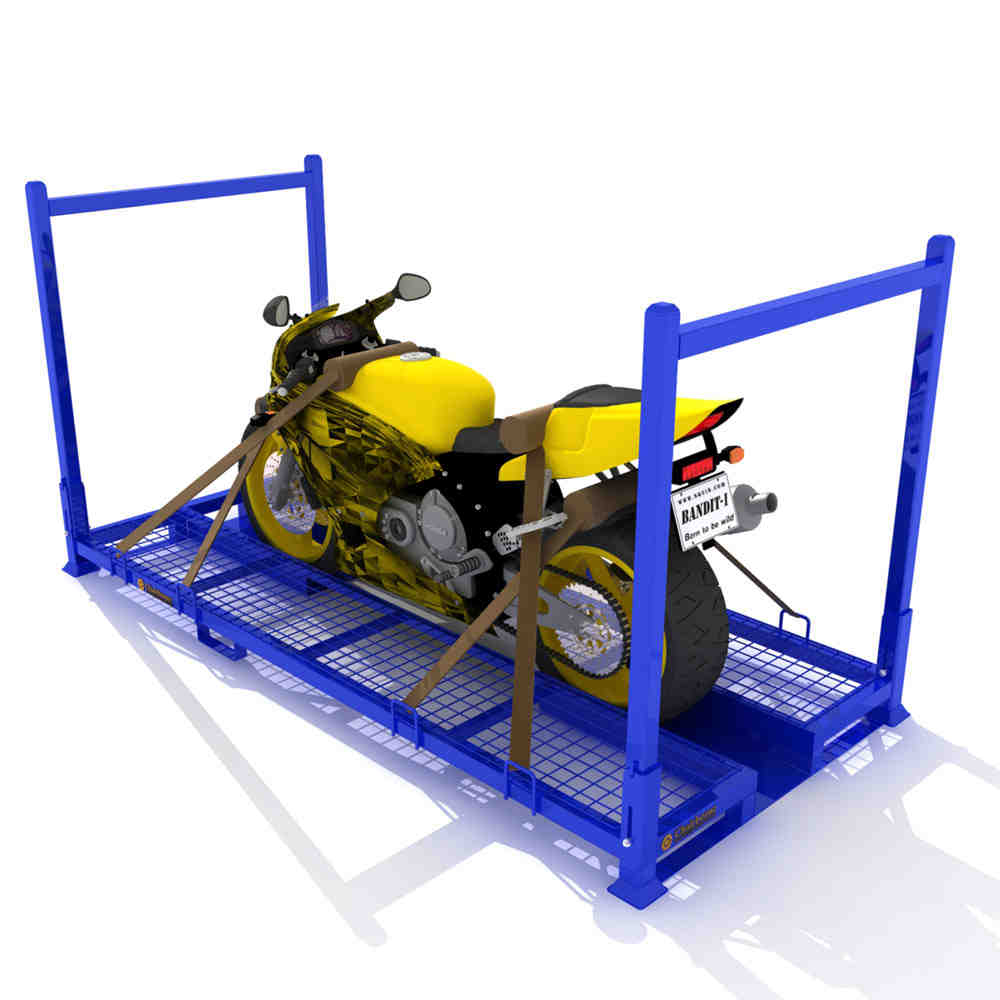

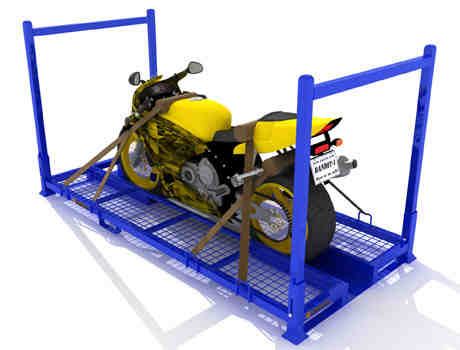

1.It’s appropriate for tridmensitional storage of all kinds of motorcycles. | ||||
 |
|||||

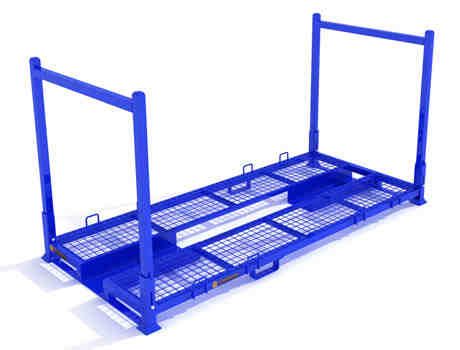

| 2.The base is a semi-open structure，and the motorcycle can be push into the rack easily without other help. |
 |
||||
|
|
|||||
 |
3.A locking hook is arranged on both sides of the folding frame to fix the motorcycle. | ||||
|
|
|||||
| 4.Convenience to use, you can change application site easily. |
 |
||||
|
|
|||||
 |

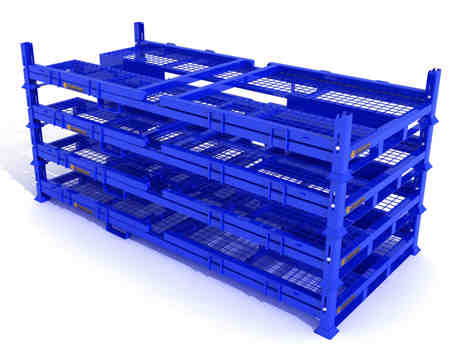

5.Using folklift or crane to stack the racks, increasing utility rate of space. | ||||
|
|
|||||
| 6.Stacking can come true whether at full or empty loading condition . It’s convenient for storage and transportation. |
 |
||||
|
|
|||||
 |
7.The size of base can be changed according to different types of motorcycles. | ||||
