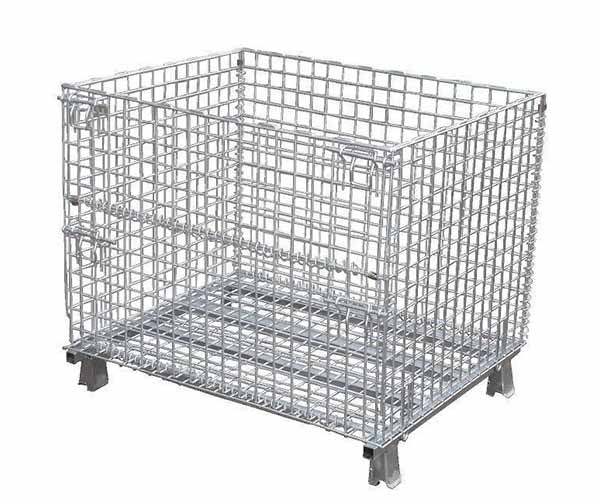

Wire Mesh Containers and Pallet Cages
Wire mesh containers, pallet cages and metal stillages for bulk storage, visibility and returnable logistics. Foldable, stackable and custom sizes.
Wire Mesh Containers, Pallet Cages and Metal Stillages
Wire mesh containers, pallet cages and metal stillages give warehouses visible inventory, stackable storage and returnable transport. Use this page as the main entry for wire mesh pallet cages, folding stillages, storage cages and custom mesh containers.
- Steel pallet boxes and metal crates for enclosed reusable storage.
- Foldable stillage cages for lower return freight.
- Stackable stillage pallets for heavy warehouse loads.
- Wire storage cages with rollers for line-side movement.
|
Exterior Dimensions: |
Folded Size: |
Interior Dimensions: |
Wire Mesh Size: |
Safe Working Load: |
Weight: |
Loading Quantity |
Surface treatment |
|
800 x 600 x 640 mm 31.5 x 23.62 x 25.2 inches |
800 x 600 x 160 mm 31.5 x 23.62 x 6.29 inches |
760 x 560 x 500 mm 29.92 x 22.04 x 19.68 inches |
50×50 mm 1.96×1.96 inches |
800kg |
28kg |
800 PCS / 40'HC |
Cold galvanizing |
|
1000 x 800 x 850 mm 39.37 x 31.5 x 33.46 inches |
1000 x 800 x 160 mm 39.37 x 31.5 x 6.29 inches |
960 x 760 x 710 mm 37.83 x 29.92 x 27.95 inches |
50×50 mm 1.96×1.96 inches |
1000kg | 43.5kg |
500 PCS / 40'HC |
Cold galvanizing |
|
1000 x 800 x 850 mm 39.37 x 31.5 x 33.46 inches |
1000 x 800 x 160 mm 39.37 x 31.5 x 6.29 inches |
960 x 760 x 710 mm 37.83 x 29.92 x 27.95 inches |
50×100 mm 1.96×3.93 inches |
800kg | 40kg |
500 PCS / 40'HC |
Cold galvanizing |
|
1200 x 1000 x 900 mm 47.24 x 39.37 x 35.43 inches |
1200 x 1000 x 160 mm 47.24 x 39.37 x 6.29 inches |
1160 x 960 x 760 mm 45.66 x 37.79 x 29.92 inches |
50×50 mm 1.96×1.96 inches |
1200kg | 59kg | 320 PCS / 40'HC | Cold galvanizing |
| Customized as required | |||||||
Embark on a new dimension of storage with our exquisitely crafted Metal Wire Basket, offering unparalleled industrial Wire Basket storage solutions. Experience the seamless integration of our Pallet Cage Stackable and Pallet Storage Cage, masterfully maximizing spatial utility. Furthermore, with our Rolling Storage Cage and wheeled storage cages, you'll experience unprecedented ease in material handling and storage mobility.
Due to its mesh construction, it is lightweight compared to its load-bearing capacity. The surface is generally painted or plated to make it rustproof and highly durable. A long-lasting storage solution.
In addition to Wire Mesh Container, they are also sometimes called mesh boxes, box pallets.
Names of the parts of mesh pallets (mesh boxes)
(1) Mesh pitch: The spacing between the steel pieces. 50 x 50mm means that the steel pieces are arranged in a grid at intervals of 50mm, while 50 x 100mm is also available. These are usually cheaper than those with a narrower mesh pitch because of the wider spacing and the smaller amount of steel used. However, the load capacity is reduced.
(2) Wire diameter: The diameter of the steel. If the wire diameter is 6.0mm, the diameter of the steel latticed together is 6mm. The larger the wire diameter, the higher the load capacity, but also the weight of the product. The most common diameter is around 6 mm.
(3) Door: The front of the mesh pallet. The doors can be folded even when the pallets are stacked on top of each other. Depending on the size of the goods to be stored, it may be possible to remove the contents of the pallets while they are stacked. In rare cases, the doors do not open.
(4) Legs: The legs of the mesh pallets. Some pallets have grooves on the bottom of the legs. This prevents the mesh pallets from shifting when they are stacked on top of each other. Even if the bottom of the pallets has grooves, they may not be able to be stacked due to the loading capacity.
