Post Pallets and Portable Stack Racks

Post pallets and portable stack racks for protecting non-stackable goods, increasing warehouse cube and creating flexible forklift-movable storage.

Get a Free Quote

100%

Steel Quality

Heavy

Duty Rating

Custom

Sizes Built

Post Pallets, Stack Racks and Portable Stacking Racks

Post pallets and stack racks protect non-stackable goods, open unused vertical space and let forklifts move storage bays where work is happening. Use this page as the main entry for demountable post pallets, nestainer racks, portable stack racks and custom warehouse stacking frames.

Nesting racks for stackable warehouse storage with compact empty return.
Nestainer pallet racks for temporary pallet rack alternatives.
Post pallet buying guide for load and storage-density decisions.
Stack racks guide for portable warehouse stacking systems.

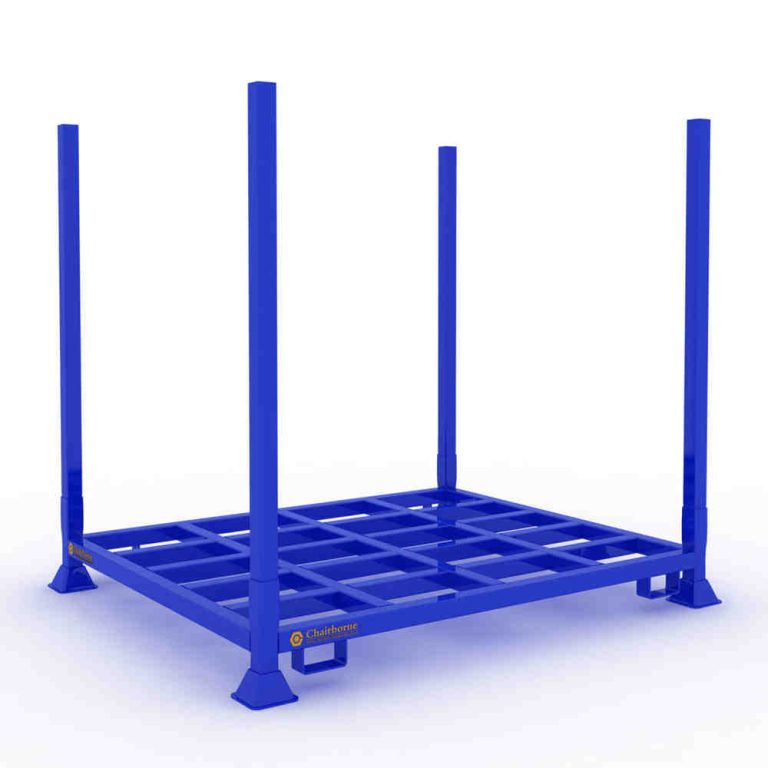

Post Pallet

Exterior Dimensions:	Folded Size:	Interior Dimensions:	Material	Safe Working Load:	Weight:	Loading Quantity	Surface treatment
1260 x 1060 x 1020 mm 49.6 x 41.73 x 40.15 inches	1260 x 1060 x 350 mm 49.6 x 41.73 x 13.77 inches	1120 x 920 x 900 mm 44.09 x 36.22 x 35.43 inches	Q235	2400kg	28.87kg	280 PCS / 40'HC	Powder coating
1260 x 1260 x 1220 mm 49.6 x 49.6 x 48.03 inches	1260 x 1260 x 350 mm 49.6 x 49.6 x 13.77 inches	1120 x 1120 x 1100 mm 44.9 x 44.9 x 43.3 inches	Q235	2400kg	36.54kg	280 PCS / 40'HC	Powder coating
1360 x 1260 x 1320 mm 53.54 x 49.6 x 51.96 inches	1360 x 1260 x 350 mm 53.54 x 49.6 x 13.77 inches	1220 x 1120 x 1200 mm 48.03 x 44.09 x 47.24 inches	Q235	2400kg	38.64kg	240 PCS / 40'HC	Powder coating
1360 x 1260 x 1320 mm 53.54 x 49.6 x 51.96 inches	1360 x 1260 x 350 mm 53.54 x 49.6 x 13.77 inches	1220 x 1120 x 1200 mm 48.03 x 44.09 x 47.24 inches	Q235	2400kg	38.64kg	240 PCS / 40'HC	Powder coating
Customized as required

Proudct Feature

1.The detachable stacking rack is suitable for storage of products that are pressure – proof, fragile, irregular in shape and not easy to stack.

2.Using folklift to stack the racks, increasing utility rate of space.

3.Convenient to use, you can change application site easily.

4.The four pillars of the rack are detachable and can be storaged under the base, which can avoid missing, save spaces and is convenient for storage and transport.

5.The special processing of the pillars ensures that the splicing process is closely coordinated, so as to avoid shaking when stacking and ensure safety.

6.The grid of the base can be different according to different loading goods.

7.Grid plate or steel plate can be added to the base according to differnet types of goods.

Engineering Layout & Drawing Services

Liaoning Chuande Steel Pallet Racks provides complimentary structural engineering layouts based on your warehouse payload, stacking count, and handling trucks constraints.

Complimentary CAD 2D layouts and 3D structural model assessments.
Rigorous loading FEA stress-strain calculations for ultimate warehouse safety.
Custom structural options: Foldable legs, stacking cups, run gates, forklift guides.

B2B Racking Structural Engineering Calculator

Input your structural guidelines below. Our math system calculates material deflection, stress bounds, and recommends optimal profiles.

Beam Span / Bay Width (mm) Clear entry span between upright frames. Common: 2700mm, 3300mm.

Frame Depth (mm)

Target Loading Capacity per Level (kg) Uniformly Distributed Load (UDL) per pair of beams.

Steel Grade Conformity

Click Compute to calculate stress factors and display structural drawing recommendations.

Standard Packing	Steel banding strapping + stretch plastic film wrapping + protector edges.
Loading Quantities	Optimized nested stacking designs to increase cargo quantities in 40ft HQ Containers.
Lead Time	15 to 25 calendar days for standard production orders (depends on volumes).
