Product Description Cantilever Racking Cantilever Racking provides an excellent solution to store irregular or long items, such as furniture, tubing lumber etc., this is achieved by eliminating block in front of the racking and providing a clear open
If you have any question or need drawings or solutions, Please leave us a message.
Cantilever Racking provides an excellent solution to store irregular or long items, such as furniture, tubing lumber etc., this is achieved by eliminating block in front of the racking and providing a clear opening in front of rack. cantilever racking is used around the world. We can tailor-make according to goods size and warehouse space. We can provide various column heights, arm lengths, base lengths (single or double sided) to ensure an ideal solution for your warehouse.
Name
Cantilever Racking
Material
Q235B Steel
Size
Customized Size
Color
Customized Color
Depth
Customized
Weight Capacity
1000kg/arm
Width
Customized
Height
Customized
Finish
Powder coating; Hot Dip Galvanized
Packing
Export Package
Certification
RMI/CE/ISO/TUV/AS4084-2012
MOQ
One 20ft/40ft Container
Free Sample
Available (Delivery Cost on Buyer)
OEM
Available
Advantages
1. Exceeding 6m height is available, the highest column is able to reach 10.5m.
2. Heavy loading, loading of single-arm can up to 1500kg.
3. Keep selling to Australia market more than 10 years.
4. Long and irregular material goods stored.

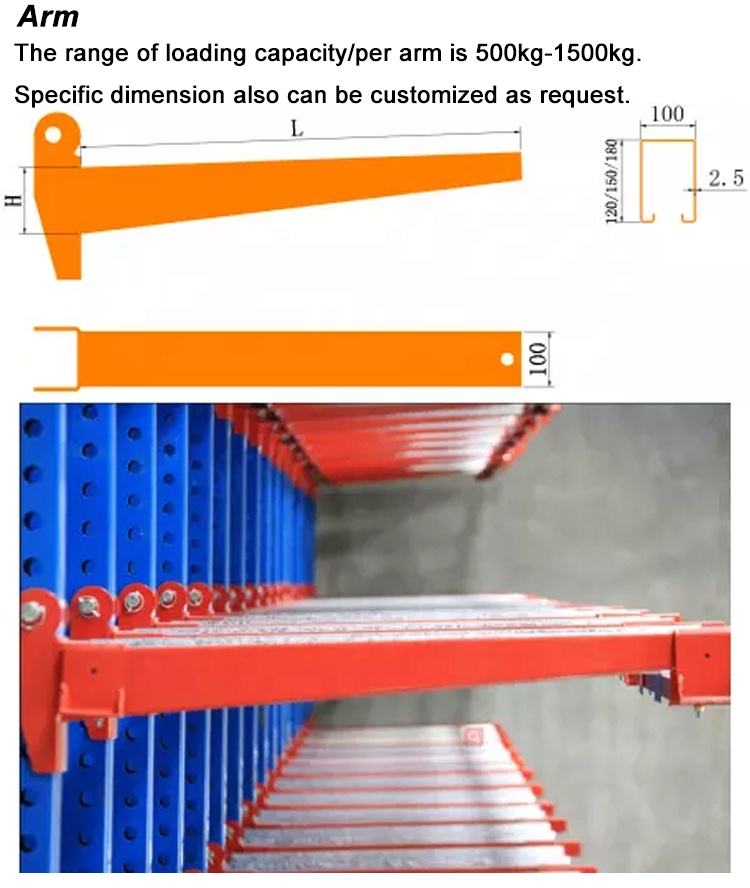

5. Our arm has a 2° uptilt which can make sure the arm won’t tilt down while goods placing.
6. Except from the regular size, the longest arm can last to 3m.

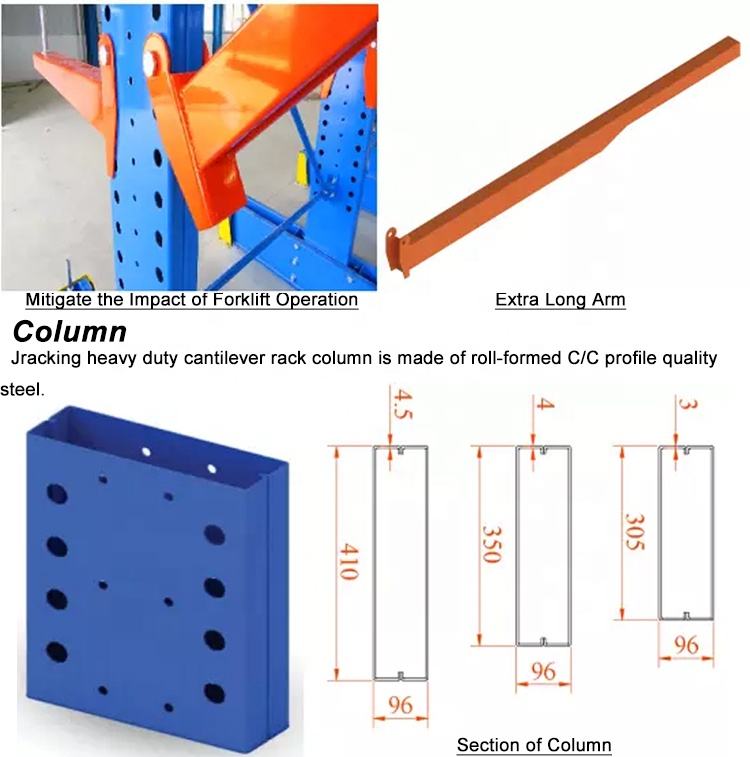

7. The connection of our cantilever column and arm is ingenious, it can mitigate the impact of forklift operation.
