Small footprint single sided heavy duty cantilever rack systems
Jracking Cantilever Racking provides an excellent solution to store irregular or long items, such as furniture, tubing lumber etc., this is achieved by eliminating block in front of the racking
If you have any question or need drawings or solutions, Please leave us a message.

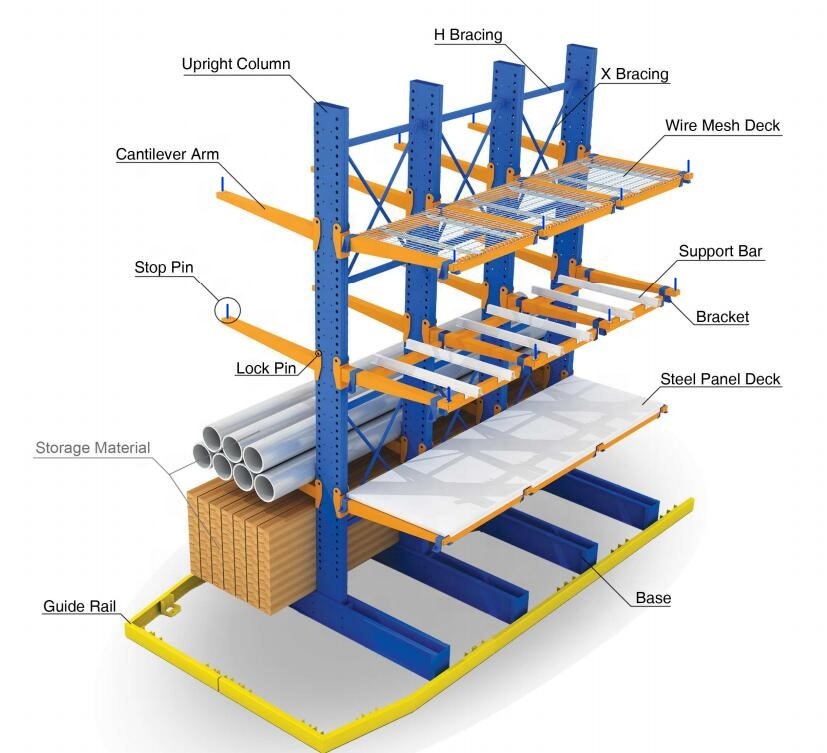

Cantilever Racking is an excellent solution for storing irregular or long objects, such as furniture, pipe tunnels, timbers etc. This is achieved by eliminating the blocks in front of the rack and providing a clear opening in front of the rack.Cantilever racking is used all over the world. It can be customised according to the size of the product and the storage space. Different column heights, arm lengths and base lengths (single or double sided) are available to provide the best solution for your warehouse.
Name
Cantilever Racking
Material
Q235B or Q345B Steel
Scale
Heavy Duty
Color and Finish
RAL Powder Coating or HDG
Depth
Customized
Weight Capacity
Customized
Width
Customized
Height
Customized
Capacity
250~800 lbs (500~1500 kgs)
Application Environment
Warehouse, Outdoors, Cold Room (Max -40C)
Certification
RMI, AS4084-2012
Project Layout Solution
Available
Construction Supervising Service
Available
Free Sample
Available (Delivery Cost on Buyer)
OEM
Available
Advantages
1. Exceeding 6m height is available, the highest column is able to reach 10.5m.

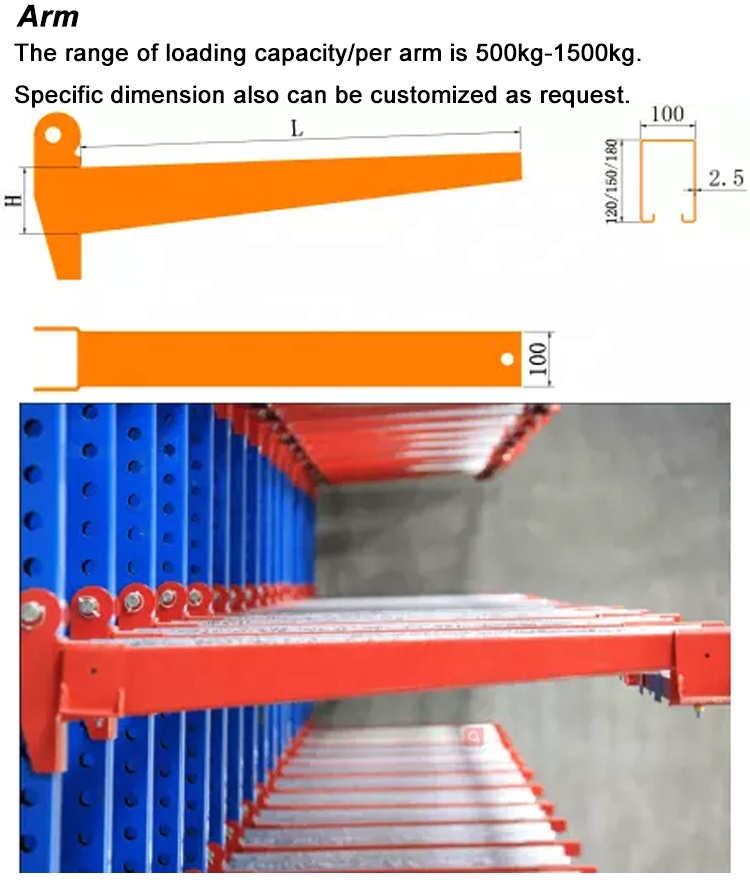

2. Heavy loading, loading of single-arm can up to 1500kg.
3. Keep selling to Australia market more than 10 years.
4. Long and irregular material goods stored.
5. Our arm has a 2° uptilt which can make sure the arm won’t tilt down while goods placing.
6. Except from the regular size, the longest arm can last to 3m.

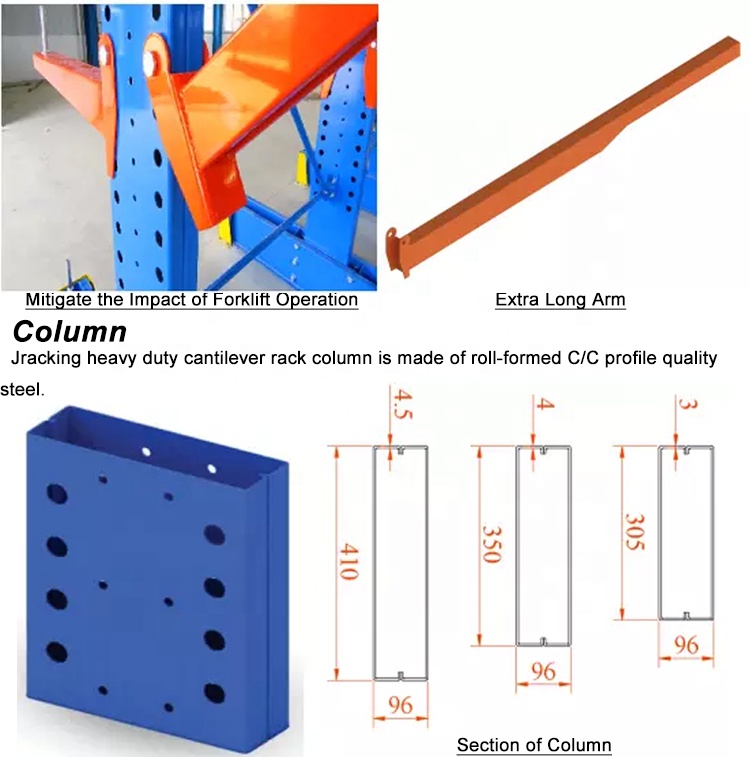

7. The connection of our cantilever column and arm is ingenious, it can mitigate the impact of forklift operation.
